The industrial rackmount computer 426-G series from Captec is our most robust off-the-shelf 2U platform. Designed for challenging environments where rack space is at a minimum, it features a short depth 2U chassis with industrial grade filtration. It offers our highest level of BOM control in a 2U form factor, positioning it as an ideal solution for industries such as oil and gas where platform consistency in a space-restricted environment is essential.
To learn more about our rack integration services, visit our rackmount computers main page.
Industry-leading performance with Intel® Core i technology. The IC-426-G features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The IC-426-G offers a host of industry-leading technologies, designed to enhance performance, increase security and lower your total cost of ownership.
The IC-426-G features a robust chassis designed to increase product lifespan when deployed in demanding and challenging industrial environments.
Designed to survive in dusty environments. The IC-426-G features a washable filter to prevent dust build-up impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the IC-426-G.
Designed for compatibility with multiple applications, the IC-426-G offers a range of component configuration options along with options supporting both full-height and low-profile expansion cards.

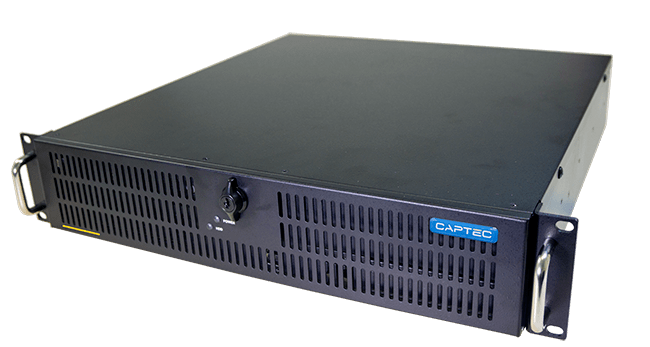

The IC-426-G chassis features a lockable front door to protect switches and drive bays from unauthorised access, ensuring tamper free operation in the field.
The IC-426-G features extended longevity by incorporating industrial-grade components on a stable platform road map. This, coupled with Captec’s change control and BoM management processes, ensures critical components are managed to increase support for software and compliance requirements.
Customise your design with chassis and component changes. The IC-426-G design can be modified from MOQs as low as 10, without engineering charges for alterations including custom branding and further ruggedisation.
The IC-426-G features a high-performance power supply, compliant with the 80 PLUS ECos standard and designed to be at least 80% efficient.
| CPU | Intel Celeron G6900, Intel Core i3-13100, Intel Core i5-13400, Intel Core i7-13700, Intel Core 13900 |
| Chipset | Q670 |
| Memory | 4 x DDR5 4400 MHz , up to 128GB (32GB per DIMM) |
| Disks | 3 x 5.25” external bay, 1 x 3.5” external drive bay |
| Operating System | Windows 10 / Windows 11 / Windows Server 20xx / Linux (configuration support optional) |
| Power Supply | 350W AC 90~264V |
| Dimensions | 427mm (W) x 88mm (H) x 450mm (D) |
| Expansion Slots | 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen3) |
| Operating Temperature | 0°C to 60°C |
| Ingress | Fine particle washable fan filter |
