Captec has a range of application ready industrial rackmount PC with Core i and Celeron processors giving increased processing and graphics power. Improved product design has resulted in increased energy efficiency and lower power consumption. Low noise levels mean they can be installed in quiet environments.
To learn more about our rack integration services visit our rackmount computers main page.
Industry-leading performance with Intel® Core i technology. The ICB-444 features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The ICB-444 features a robust chassis designed to increase product lifespan when deployed in demanding and challenging industrial environments.
Designed with multiple different applications in mind, the ICB-444 offers a range of component configuration options along with support for both full-height and low-profile expansion cards.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the ICB-444.
Designed to survive in dusty environments. The ICB-444 features a washable filter to prevent dust build up impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
The ICB-444 features extended platform longevity, by incorporating industrial-grade components on a stable platform road map. This coupled with change control and BoM management processes Ensure critical components are managed to maintain support for software and compliance requirements.

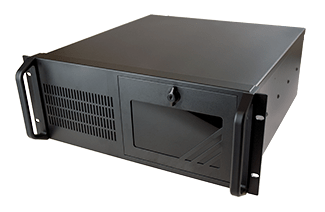

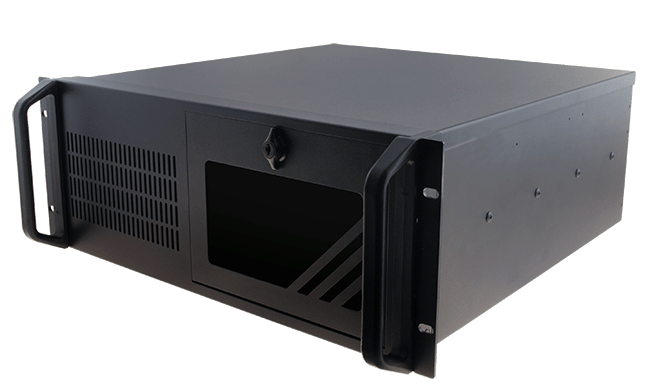

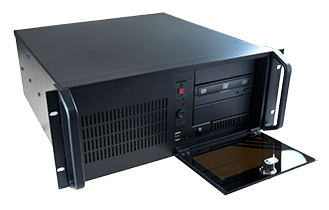

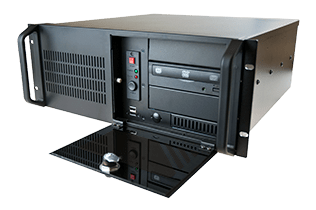

The IC-444-B chassis features a lockable front door to protect switches and drive bays from unauthorised access, ensuring tamper free operation in the field.
Customise your design with chassis and component changes. The ICB-444 design can be modified from MOQs as low as 10, without engineering charges for alterations including custom branding and further ruggedisation.
The ICB-444 features a high-performance power supply, compliant with the 80 PLUS Gold Ecos standard and designed to be 89% efficient at 100% load
| CPU | Intel© 4th/5th generation Celeron and Core i Celeron G1840, 2.7GHz, Dual Core; i3-4360, 3.7GHz, Dual Core; i5-4590S, 3.0GHz, Quad Core; i7-4790S, 3.2GHz, Quad Core; i5-5675C, 3.1GHz Quad Core; i7-5775C, 3.3GHz, Quad Core |
| Memory | 4GB DDR3 (Expandable to 16GB) |

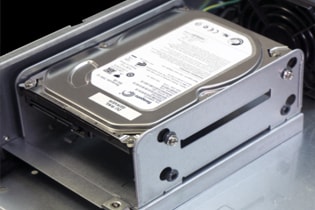

| Storage | 1 x 64GB 2.5” SSD (Optional SSD/HDD, multiple drives, removable caddies, RAID) ; Optional SATA DVD-RW |
| Graphics / Video | Intel© HD/4600/6200 Graphics depending on processor, DirectX 11.1, OpenGL 4.0. Supports up to Two Independent Displays / 1 x VGA, Optional DVI/HDMI |
| Expansion | 12 Full Length, Full Height Slots: 1 x PCIe x16, 3 x PCIe x1, 8 x PCI. Will accommodate double width graphics cards |
| LAN | 2 x Gigabit LAN Ports: 1 x Intel© 82574L Gigabit LAN, 1 x Intel© I217LM Gigabit LAN with iAMT 9.0 support |
| I/O | 4 x USB 3.0 (2 front panel); Optional: 4 x serial ports (3 x RS232, 1 x RS232/422/485) 4 x USB 2.0 |
| Audio | Optional |
| Operating System | Windows 7/8/10, Linux |
| PSU / Input Voltage | 400W 80+ Gold PSU / 90-265VAC, 50/60HZ |
| Dimensions | 427mm (W) x 176mm (H) x 450mm (D) |
| Operating Temperature | 0°C-50°C |
| Ingress Protection | Inlet air filters |
| Certification | CE, RoHS |
