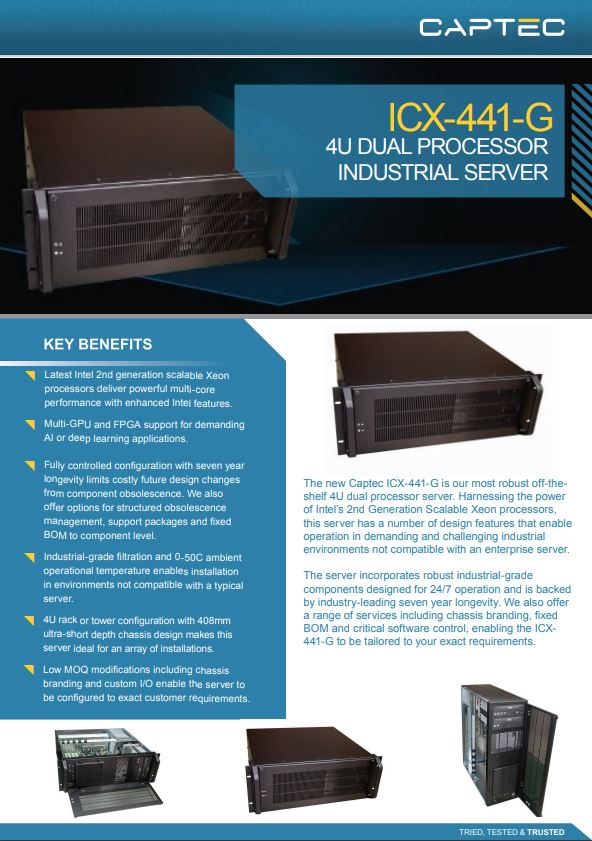

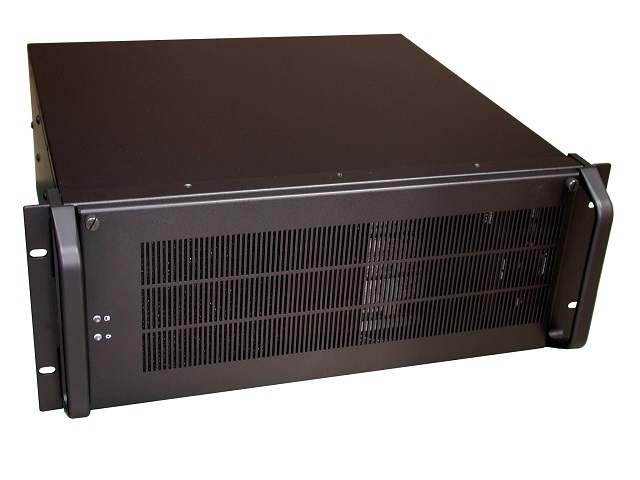

The ICX-441-G from Captec is our most robust off-the-shelf 4U dual processor server. Harnessing the power of Intel’s Scalable Xeon processors, this server has a number of design features that enable it to operate in demanding and challenging industrial environments not compatible with a typical enterprise server.
Each model incorporates robust industrial grade components designed for 24/7 operation and is backed by industry-leading seven year longevity. We also offer a range of services including chassis branding, fixed BOM and critical software control, enabling the ICX-441-G to be tailored to your exact requirements.
Xeon range
To learn more about our rack integration services, visit our rackmount computers main page.
Industry-leading performance with Intel’s latest Scalable Xeon processors. Support for a wide range of multi-core single and dual socket configurations ensures the right performance level is specified for your application while retaining cost-effectiveness.
With dual multi-core processors and support for up to four PCI express FPGA or GPU cards, the ICX-441-G is ideally suited to demanding AI and deep learning applications
Fully controlled configuration with seven years longevity limits costly future design changes from component obsolescence. We also offer options for structured obsolescence management, support packages and fixed BOM to component level.
Industrial grade filtration and 0-50C ambient operational temperature enables installation in environments where standard servers would not be suitable
With a depth of just 408mm, the ICX-441-G can be configured to rack or tower orientation making it ideal for a wide array of installations.
Low MOQ modifications including chassis branding and custom I/O enable the server to be configured to meet exact customer requirements.
| CPU | Intel Xeon Scalable processor/2nd Gen Intel Xeon Scalable processor up to 205W |
| Chipset | Intel C621 |
| Memory | 12 x DDR4 RDIMM / LRDIMM / RDIMM 3DS / LR DIMM 3DS 2666MHz |
| Memory capacity | Up to 384GB RDIMM / 768GB LRDIMM / 1536GB RDIMM 3DS / LRDIMM 3DS |
| PCIe expansion | 4 x PCIe Gen3 x16 / 3 x PCIe Gen 3 x8 |
| LAN | 2 x Intel I350-AM2 GB LAN |
| Storage | 14 x SATA 6Gb/s / 2 x M.2 (NVMe) |
| Storage options | Up to 8 x 2.5” SSD/HDD or up to 3 x 3.5” HDD |
| Graphics | 1 x VGA |
| USB | 3 x USB 2.0 / 6 x USB 3.0 |
| Server management | IPMI 2.0 compliant BMC |
| TPM | Supported |
| Chassis | 4U 19” rackmount |
| Expansion | 2 x 5.25” external / 1 x 3.5” internal |
| Dimensions | 483mm x 177mm x 408mm (WxHxD) |
| Weight | 17.5 kg (gross) |
| Fans | 1 x 120mm intake fan (filtered) |
| Operating temperature | 0-50C ambient operating temperature |
| PSU | Single 750W 80 PLUS Gold (standard) |
| Input voltage | 100-240V AC |
| Certification | CE, RoHS |
| Expected discontinuance | 2026 |
