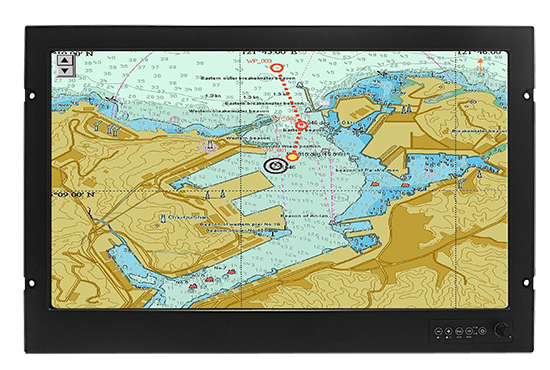

These marine-certified displays have been designed to complement our range of marine computers. The 24-inch displays offer sunlight readability and touch screen options for use in bridge consoles, control rooms and other compartments in applications such as navigation, control, and monitoring and alarm systems. All platforms are certified to DNV 2.4 and IEC 60945.
The MCD-241 is certified to marine standards DNV 2.4, IACS E10 and IEC6094, ensuring it can be specified for a variety of shipborne applications with confidence.

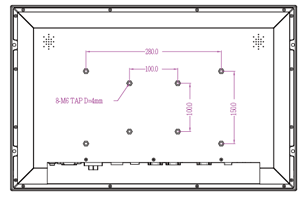

The MCD-241 can be panel, VESA or deskmounted with an optional mounting kit. The mounting flexibility ensures the platform can be integrated into the desired install environment with minimal time and effort.
Customise the screen for protection levels that meet your exact application requirements. The MCD-241 can be specified with either SAW or resistive touchscreens depending on your needs. Add additional protection with 3mm glass.
An IP66 front panel delivers protection against dust and water ingress for reliable operation in fluid and dust-laden environments.
The MCD-241 has an operating temperature range of -15°C to 55°C, providing extended operational life in applications with challenging temperature demands.
| Display Size | 24-inch TFT |
| Display Resolution | 1920 x 1080 |
| Display Contrast | 5000:1 |
| Display Brightness | 250cd/m2 |
| Touch Screen | Optional 5-wire resistive |
| I/O | 2 x RS232 for optional touch, remote |
| Video Input | 1 x VGA, 1 x composite video, 1 x s-video, 1 x DVI-D |
| Input Voltage | 24 VDC, 80W |
| Dimensions | 593mm W x 384mm H x 63mm D |
| Construction | Aluminium front bezel |
| Operating Temperature | -15°C to 55°C |
| Shock | 1.5g, 11ms |
| Vibration | 5-500Hz, 1grms, 3 axis |
| Ingress Protection | IP66 front panel (SAW touch IP54), IP54 rear |
