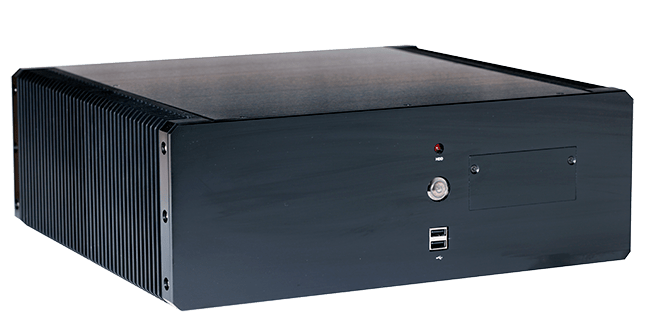

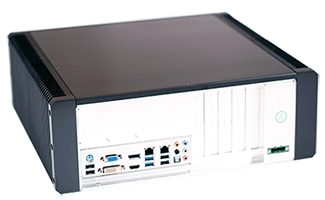

Versatile, powerful and fanless computer designed to marine standard IEC60945 for critical ship systems. The MCS-431 is ideal for navigation applications including bridge consoles, positioning systems, ECDIS, ARPA and propulsion control. It is also perfect for machinery control and monitoring, alarms, and fire and emergency systems. Silent operation makes it ideal for bridge installations. Versatility is enhanced by a range of approved I/O and graphics cards which also maintain certification.
The MCS-431 is certified to marine standards DNV 2.4, IACS E10 and IEC60945, ensuring it can be specified for a variety of shipborne applications with confidence.
The MCS-431 features a rugged fanless design, combining excellent thermal performance with low weight. The platform operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high-reliability.
Industry-leading performance with Intel® Core i technology. The MCS-431 features options for a range of processors with onboard graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The MCS-431 comes with marine-certified expansion and configuration options. Five full-height expansion slots with approved graphics and I/O cards, including serial and NMEA, provide high performance capabilities.
The MCS-431 has an operating temperature range of -15°C to 55°C, providing extended operational life in applications with challenging temperature demands.
Intel© 4th Generation i3-4330TE (2.4GHz), i5-4590T (2.3GHz), i7-4770TE (2.3GHz)
Up to 32GB DDR3
SSD / HDD (optional hotswap bay)
Integrated in processor, three independent displays (optional dual/quad graphics cards)
3 x full length slots: 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 1x mini-PCIe slot
2 x gigabit LAN ports (optional single/dual Ethernet cards)
4 x USB 3.0, 4 x USB 2.0
3 x RS232
1 x RS232/422/485
4 x Isolated RS-232/422/485/NMEA card
8 x Isolated RS-232/422/485/NMEA card
Onboard 7W audio amplifier kit
Windows 7/8/10, Linux
Optional AC adapter
380mm (W), 133mm (H), 350mm (D)
Aluminium alloy chassis with heat pipe cooling
-15oC to 55°C
-20oC to 70°C
IEC60945, DNV 2.4, IACS E10, CE
Dual VGA/DVI graphics card
Quad VGA/DVI graphics card
4 x isolated RS232/422/485/NMEA card
8 x isolated RS232/422/485/NMEA card
Single Ethernet card
Dual Ethernet card
7W audio amplifier kit
19-inch rack mounting kit
Dual 2.5-inch SATA hot swap drawer, RAID supported
