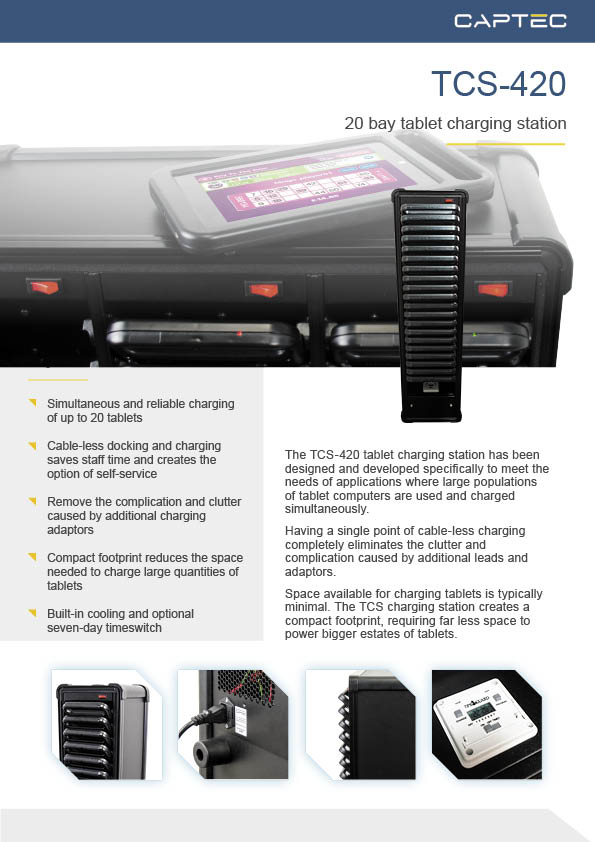

The TCS-420 tablet charging station has been designed and developed specifically to meet the needs of applications where large populations of tablet computers are used and charged simultaneously.
Having a single point of cable-less charging completely eliminates the clutter and complication caused by additional leads and adaptors. Space available for charging tablets is typically minimal. The TCS charging station creates a compact footprint, requiring far less space to power bigger estates of tablets.
Designed for locations where large estates are used on a single site, the charge station provides compact and hassle-free charging for 20 tablets.
The cable-free architecture makes charging the X240 less complex, facilitating the possibility of self-service installations and reducing staff tablet issuing time.
Cable-less docking eliminates downtime and prevents issues associated with cable breakages due to wear and tear.

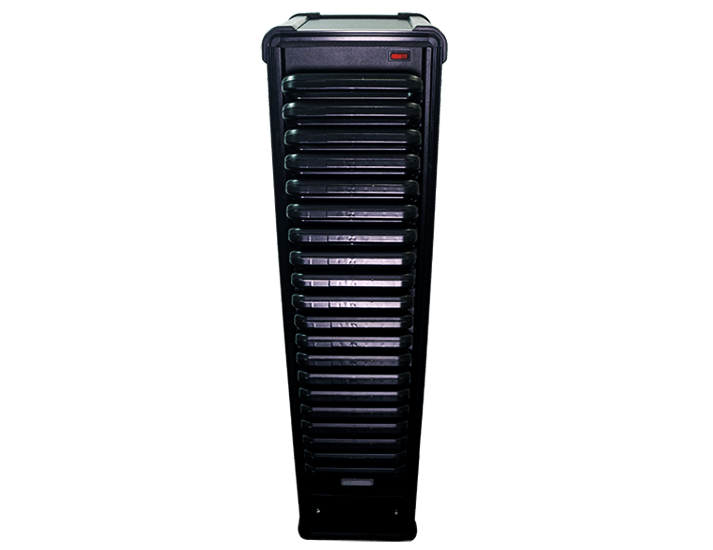

With three vertical stacks of 20 tablets, the charge station minimises the floor space required to keep tablets charged.
Built-in cooling ensures tablets are reliably and efficiently charged. An optional seven-day time switch can be specified to schedule charging.
Optional built-in Ethernet connectivity to a compatible charge station provides a wired connection to the tablet, reducing wireless data-transfer issues.
| Compatible Tablets | X240 |
| Charging Bays | 20 Bays – 12V / 2A per bay |
| Input Voltage | 110 VAC 60Hz / 230VAC 50Hz |
| Retention | M6 floor retention bolt or wall retention brackets |
| Dimensions | 271mm W 1029mm H x 302.5mm D |
| Weight | 20kg |
| Operating Temperature | 0-30⁰C |
| Storage | -10⁰C – 50⁰C |
| Certification | UKCA, FCC |
| Options | 7-day/24-hour time switch |
| Ordering Information | TCS-420 – 20 bay charge station TCS-420-T – 20 bay charge station with time switch |
