These highly expandable dual GPU workstations allow integrators to combine machine vision applications with AI. Powered by 6 core 8th generation Intel processors and leading-edge RTX 2080 Nvidia Turing architecture, the workstation range delivers high processing performance for demanding real-time applications.
Industry-leading performance with Intel’s 8th generation Xeon and Core i technology. The MVC-481-1500 range features options for high performance (up to 4.6GHz) multi-core processors, designed for demanding vision and imaging applications.

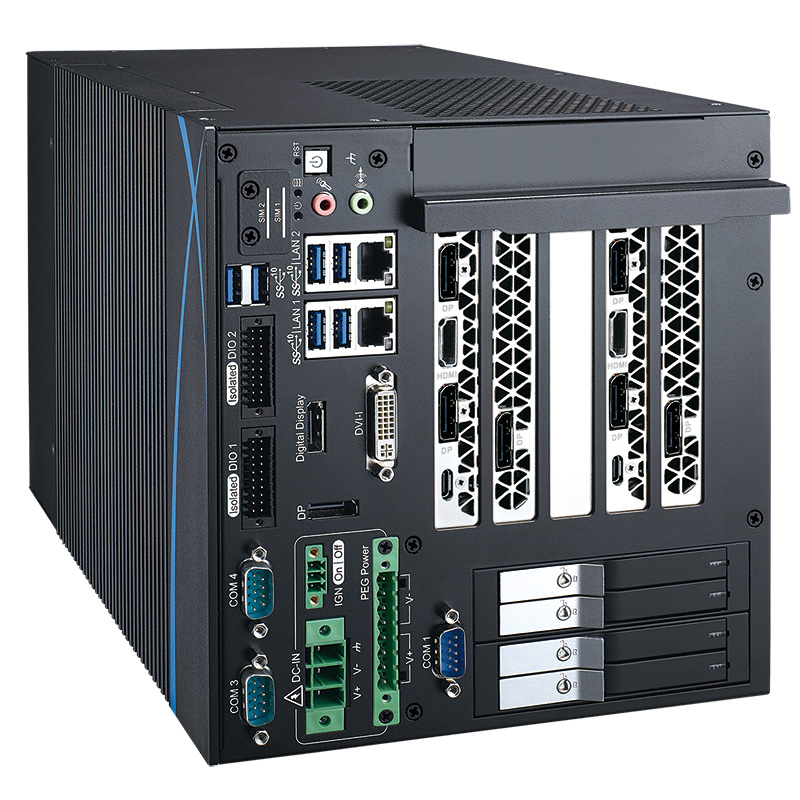

The MVC-481-1500 range features four full-height expansion slots with options for both PCIe and legacy PCI devices. This allows for a wide range of third party application-specific expansion cards including GPUs and FPGA boards, enabling these systems to fit the exact needs of your application.
1 x PCIe X16, 1 x PCIe x4, 1 x PCIe x1, 2 x Mini PCIe, M.2 and optional PCI for legacy expansion cards provide a wealth of expansion and customisation options for application-specific requirements. Captec will install, configure and test the complete platforms, ensuring total functionality before delivery.
With its robust design, the MVC-481-1500 range is protected against high shock and vibration conditions which, coupled with an operating temperature range of -40°C to 75°C, provides extended operational life in a range of challenging environmental conditions. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high reliability.
*Some GPU cards require a small chassis fan to be installed for adequate cooling
2 x GbE LAN, 4 video displays, 6 x USB 3.1 (gen2), 4 x COM, 3 x SIM slots, and 32 GPIO ensures the MVC-481-1500 family is compatible with a wide range of install environments and machine vision applications.
Intel Xeon /Core™ i7/i5/i3 processor (Coffee Lake-S)
4 x DDR4 2666MHz RAM, up to 128GB
4 x removable 2.5” SSD (supports RAID 0/1/5/10)
Intel HD P630/630 (dependent on CPU)
2 x mini-PCIe
2 x gigabit Ethernet LAN
6 x USB 3.1 (Gen2)
1 x DVI-I: up to 1920 x 1200 @ 60Hz
Realtek ALC892, channel HD audio
6 – 36V DC input
172mm (W) x 330mm (L) x 210mm (H)
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
