Our bespoke rack design enabled the customer to install his equipment into a confined space envelope on board the vessel. The rack had to meet shock & vibration, water & dust ingress and EMC standards so to protect sensitive electronics equipment whilst interfaced to a bespoke set of military equipment.
Lee Town,BDM
Our customer is a maritime high-technology enterprise with a global footprint and expertise in the fields of hydroacoustics, sensor engineering and information technology.
The solution is part of an autonomous vessel for the detection and classification of submarines, mines and other surface platforms.
The design and supply of a fully integrated bespoke shock-rated 19” rack enclosure, designed to meet to DEF-STD 00-35, to MIL-STD 461G, EN61010 and IP65
Installation space envelope restricted to height 800mm, width 610mm, depth 670mm
With restricted space and a fully equipped rack, the operating temperature range must be 0°c to +60°c through a forced air-cooling solution while maintaining the IP65 rating
Front access to the equipment is needed for equipment installation and serviceability
Interface with military-grade equipment with MIL-STD connection
The Solution
Bespoke designed ruggedised rack enclosure to meet shock and vibration requirements with X-mounts with compliance to DEF-STD 00-35, to MIL-STD 461G, EN61010 and IP65

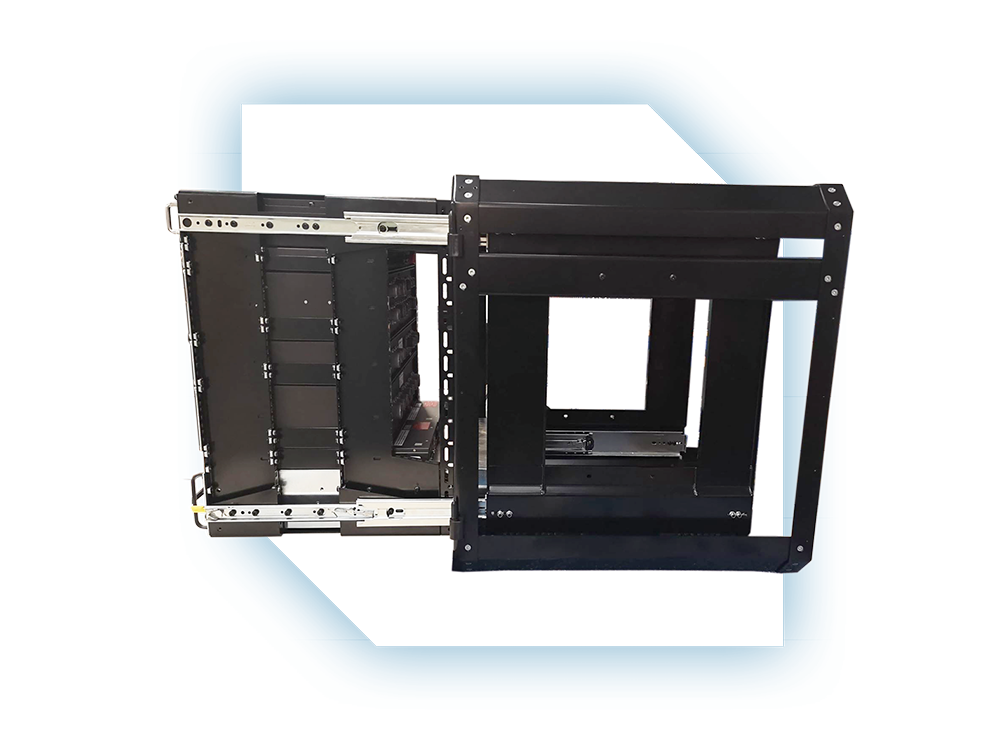

Design of a sliding inner rack to allow rear access to equipment for serviceability to overcome the space constraints

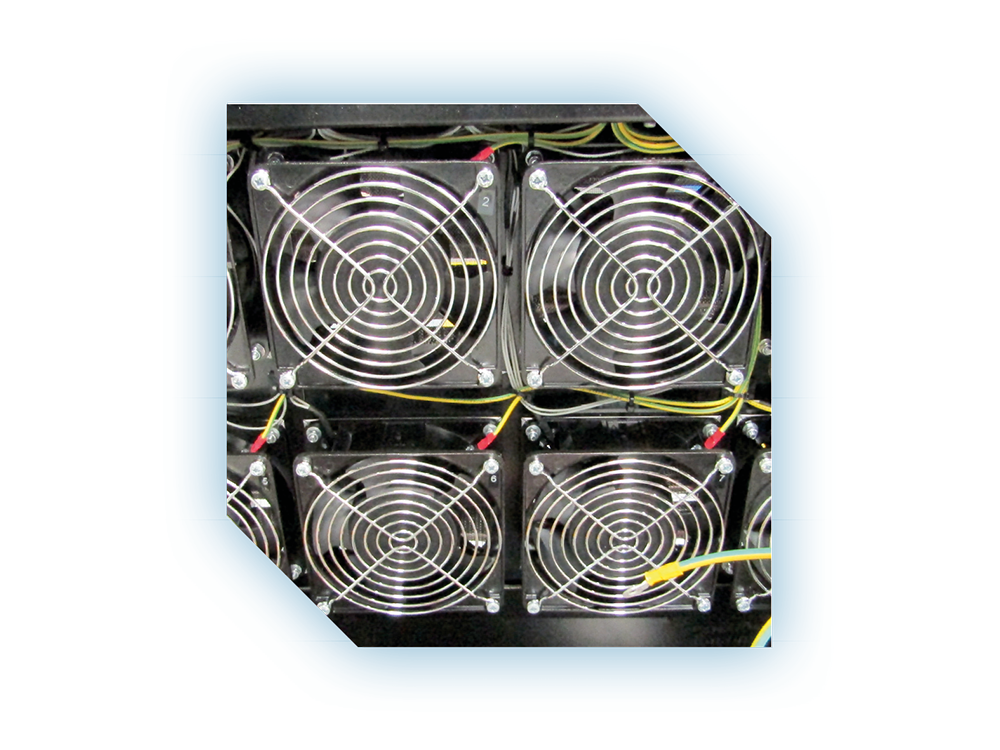

High performance forced air-flow design whilst maintaining IP65 water and dust rating
Design and manufacture of specialised cabling and connectivity for complex vessel integration designed to meet the standards set
Full time project management support to ensure delivery on time and in budget
The Outcome

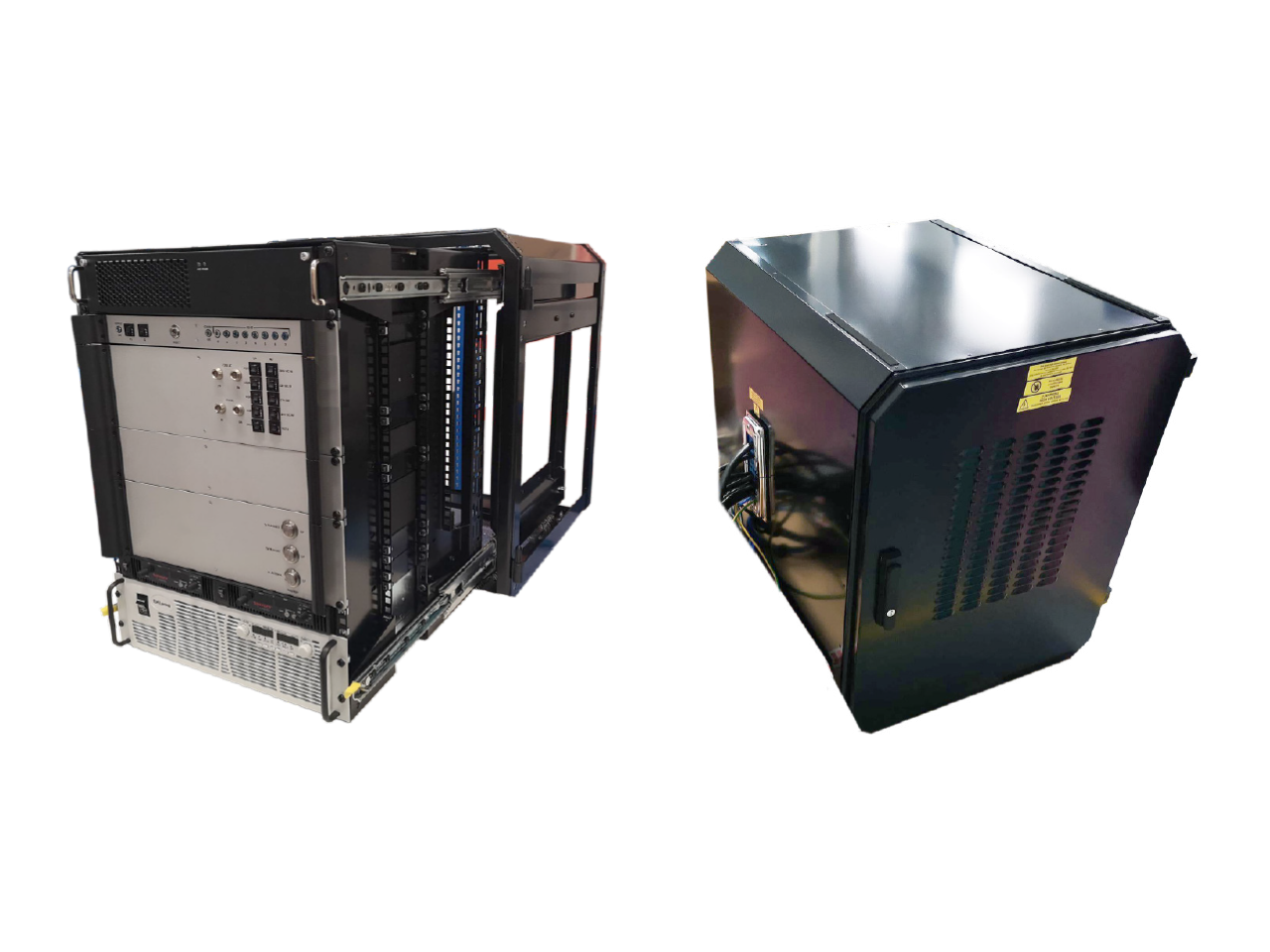

Bespoke 19” rack enclosure designed specifically to meet a multitude of complex requirements enabling the delivery of an innovative sonar solution
A fully shock mounted solution to meet DEF and MIL standards
Rack design to specific weight target

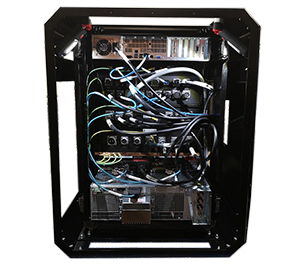

An integrated fully ruggedised server for primary control system
Air flow design enabling IP65 compliance and equipment performance within expected temperature operation range
Have similar challenges?
Contact our team of engineering experts to develop a solution to meet the exact needs of your project
