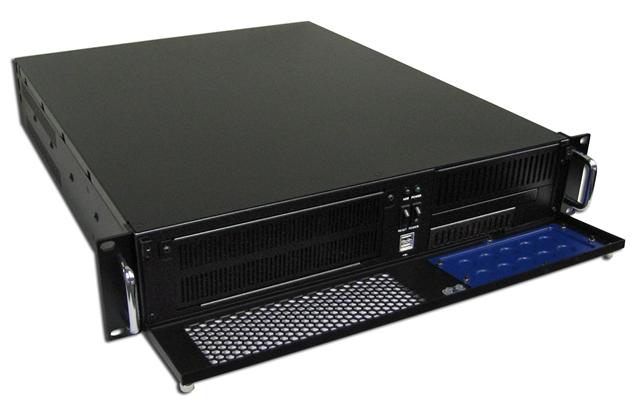

The ICX-421-G from Captec is our most robust off-the-shelf 2U dual processor server. Harnessing the power of Intel’s Scalable Xeon processors, this server has a number of design features that enable operation in demanding and challenging industrial environments not compatible with a typical enterprise server.
Xeon range
To learn more about our rack integration services, visit our rackmount computers main page.
Industry-leading performance with Intel’s latest Scalable Xeon processors. Support for a wide range of multi-core single and dual socket configurations ensures the right performance level is specified for your application while retaining cost-effectiveness.
Fully controlled configuration with seven year platform longevity limits costly future design changes due to component obsolescence. Captec also offer options for a structured obsolescence management and support package and fixed BOM to component level.
Industrial grade filtration and 0-50C ambient operational temperature enables installation in environments not compatible with standard servers
The 2U form factor with 510mm depth makes this server ideal for spaced-constrained installations.
Low MOQ modifications including chassis branding and custom I/O enable this server to be configured to exact customer requirements.
| CPU | Intel Xeon Scalable processor /2nd Gen Intel Xeon Scalable processor up to 205W |
| Chipset | Intel C621 |
| Memory | 12 x DDR4 RDIMM / LRDIMM / RDIMM 3DS / LR DIMM 3DS 2666MHz |
| Memory capacity | Up to 384GB RDIMM / 768GB LRDIMM / 1536GB RDIMM 3DS / LRDIMM 3DS |
| PCIe expansion | 4 x PCIe Gen3 x16 / 3 x PCIe Gen 3 x8 |
| LAN | 2 x Intel I350-AM2 GB LAN |
| Storage | 14 x SATA 6Gb/s / 2 x M.2 (NVMe) |
| Storage options | Up to 4 x 2.5” SSD/HDD (hot swap) or |
| Graphics | 1 x VGA |
| USB | 3 x USB 2.0 / 6 x USB 3.0 |
| Server management | IPMI 2.0 compliant BMC |
| TPM | Supported |
| Chassis | 2U 19” rackmount |
| Expansion | 1 x 5.25” external |
| Dimensions | 483mm x 88mm x 510mm (WxHxD) |
| Weight | 14.5 kg (Gross) |
| Fans | 3 x 80mm intake fan (filtered) |
| Operating temperature | 0-50C ambient operating temperature |
| PSU | Single 600W 80 PLUS Bronze (standard) |
| Input voltage | 100-240V AC |
| Certification | CE, RoHS |
| Expected discontinuance | 2026 |
